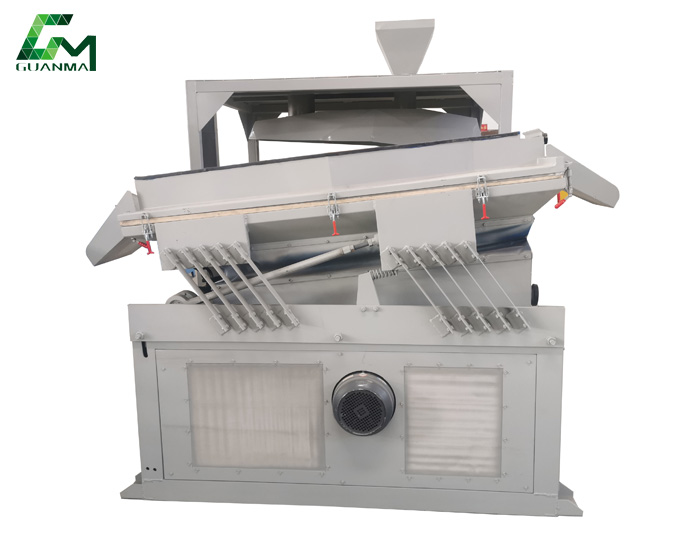

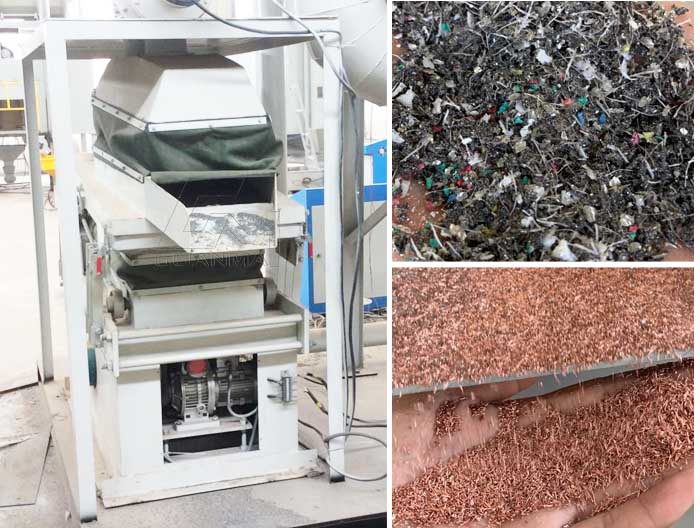

Airflow separator

Airflow separator is suitable for separate the metal and nonmetal.Airflow separator is consisting of classifier,cyclone

separator dust catcher,and draft fan.Material is up to classifier by strength of fan,separate fine material from coarse

material under centrifugal force of grading turbine high speed rotation.and suitable fine material is collected by cyclone

separator or dust catcher through grading impeller.Under the gravity and centrifugal force,coarse material slide,threw

to the bulk around and slide,during sliding the coarse material is stroke by the airflow,the fine material scattered from

together with coarse is blew to classify chamber.

Technical Parameter:

Product features:

1.It takes the grading impeller device,low speed and power,anti-abrade;

2.Airflow classifier with reasonable structure,could produce different fine finished ones,especially to scale production

and industrialization required 325-8000 meshes(1.6-45micrometer)micro powder mill;

3.It is widely used to be made closed circulation to be applied to ball grinding machine,vibrating grinding machine,

ray grinding mill equipment;

4.Running under negative pressure,dust emission less than 400mg/m,the noise is not more than 75db(a);

5.High degree of automation.The control system taken processing control,appear running environment.every

classifier impeller adopts sleeplessly adjustable speed electronic transducer,the auto-circulating system is controlled

by electronic system.
