Waste Refrigerator recycling plant

Product Introduction:

Waste Refrigerator recycling plant is used to recycle all kinds of waste Refrigerators (or freezer), After the waste refrigerator is recycled, we can finally get: iron, plastic, foam, nonferrous metals and other materials

Video Description:

PRODUCT DESCRIPTION:

Waste Refrigerator recycling plant is used to recycle all kinds of waste Refrigerators (or freezer), After the waste refrigerator is recycled, we can finally get: iron, plastic, foam, nonferrous metals and other materials

APPLICATION

Waste refrigerators of various capacities

FINAL PRODUCTS

Iron, Plastic, Foam, Nonferrous metals

PRODUCTS STRUCURE

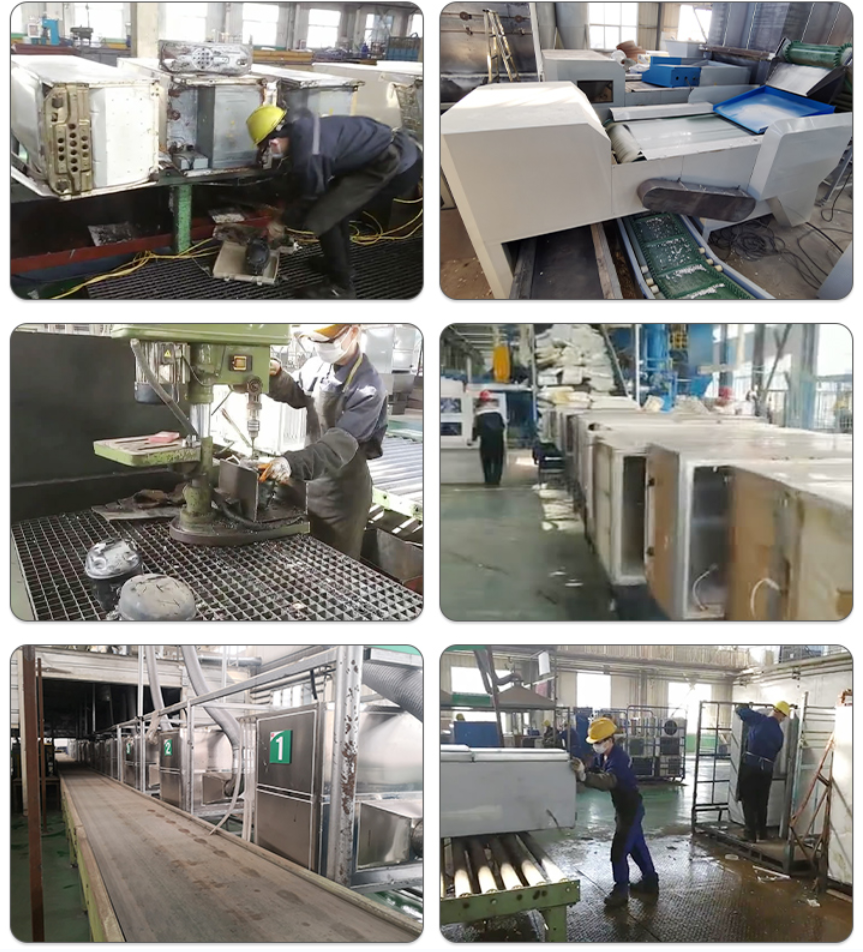

1. When the waste refrigerator (or freezer) is on the unpowered drum, disassemble it manually and remove the plastic and glass from the box.

2. According to different types of refrigerants, refrigerant recovery devices are used to classify and recover refrigerants. Remove the compressor and condenser, etc.

3. The whole machine enters a double- shaft shredder for shredding and preliminary crushing.

4. The materials enter the hammer crusher, and are crushed for the second time through crushing and kneading by the crusher.

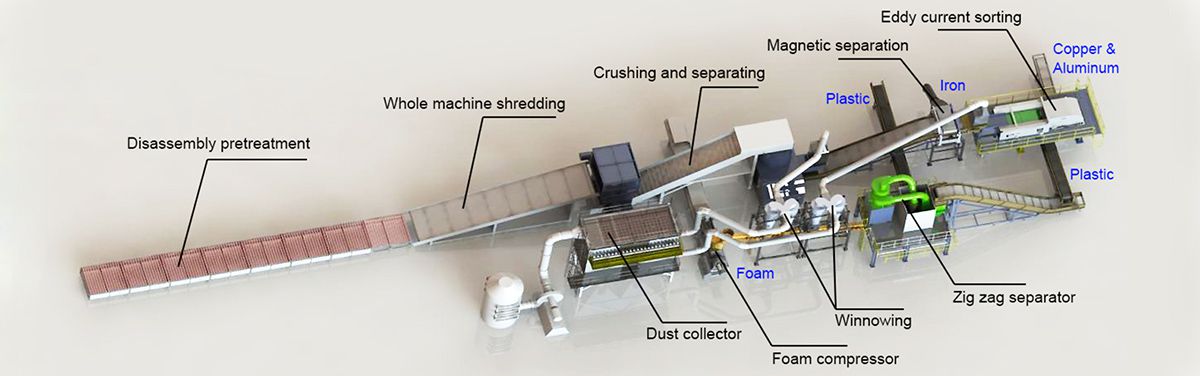

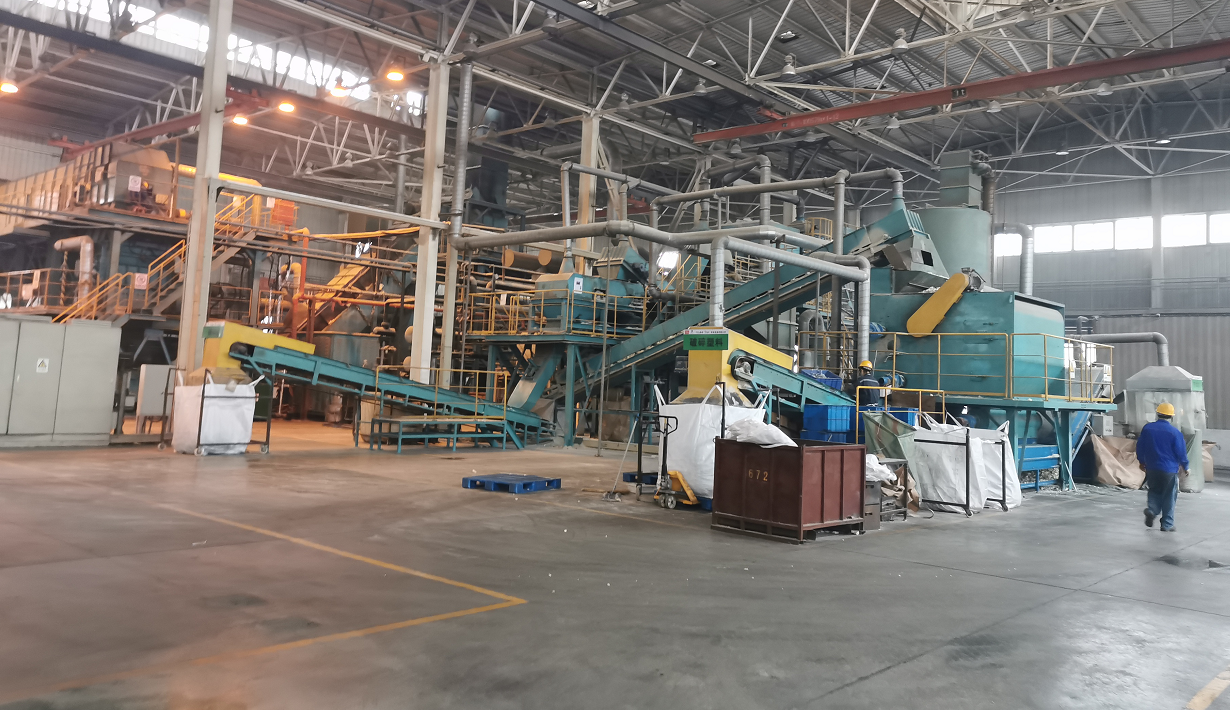

Waste refrigerator recycling plant workflow

5. At the same time of secondary crushing, part of polyurethane foam will be separated into foam separator by air separation. Heavy materials such as plastic and metal enter the belt conveyor.

6. Materials crushed by plastic and metal are separated by magnetic separation on the belt, and then enter eddy current separation.

7. Non-ferrous metals, such as copper and aluminum, are separated by eddy current, and plastic and foam materials are transported to the airflow separation system through belts to separate pure plastic and foam. Polyurethane foam is compressed into blocks by a foam crusher.

MAIN EQUIPMENTS

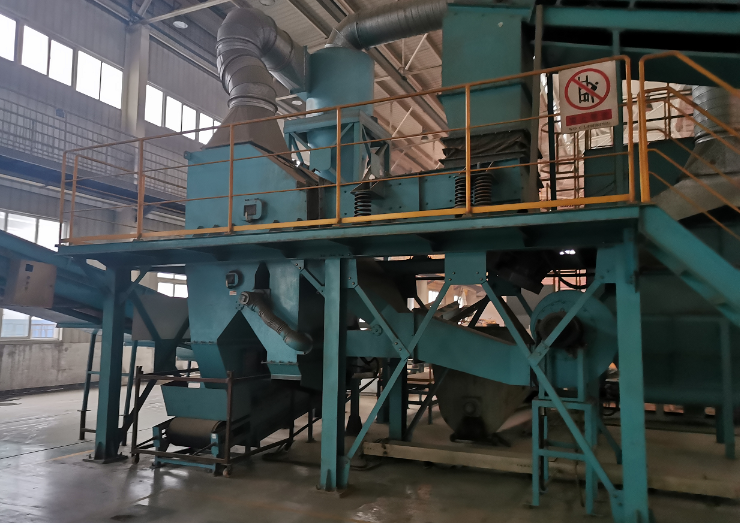

The whole refrigerator recycling production line includes Pre-dismantling platform, Double shaft shredder, Vertical hummer crusher, Magnetic separator, Eddy current sorting machine, Wind separator, Foam compacting machine, etc.

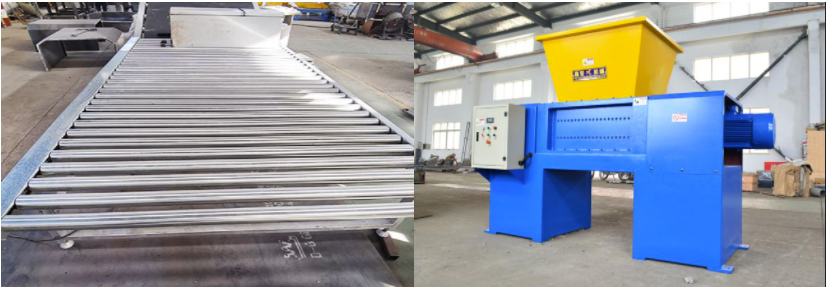

Pre-dismantling platform Double shaft shredder

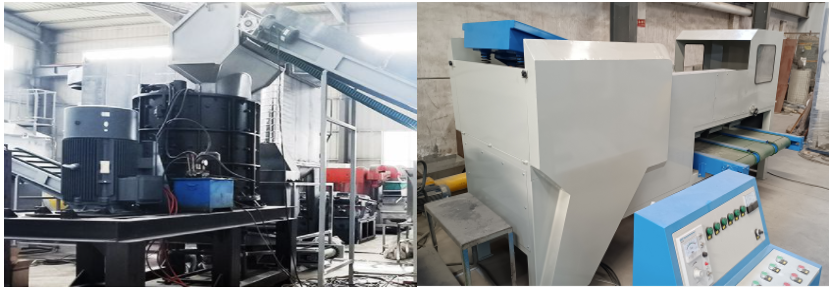

Vertical hummer crusher Eddy current sorting machine

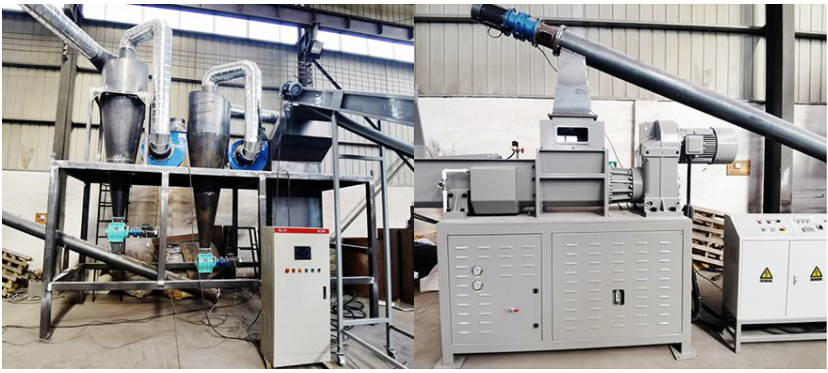

Wind separatorWind separator Foam compacting machine

PRODUCT FEATURES

1. Negative Pressure: The whole recovery process is a sealed negative pressure environment, which reduces the emission of gas and pollutants.

2. No Pollution: The waste refrigerator recycling plant is equipped with a dust removal system, and the gas and particulate matter are collected and treadted by the dust removal system and discharged up to the standard.

3. Safety: Many parts of the refrigerator recycling production line is equipped with detection facilities such as temperature and cyclopentane gas concentration, and graded alarm and safety control are carried out.

TECHNICAL PARAMETERS

Capacity	600 units/hour (According to raw materials)
Equipment Size	51000X13000X6500mm (Customizable)
Capacity Reduction Ratio of Polyurethane Foam	1/5-1/8
Iron Recovery Rate (weight%)	≥99%
Recovery Rate of Copper & Aluminum (weight%)	≥97%
Plastic Sorting Rate (weight%)	97% (<3% foam in recycled plastic)
